4.1. Direct use of geothermal resources in Indonesia

INTRODUCTION

Geothermal direct use dates back thousands of years, when people began using hot springs for bathing, cooking food, and loosening feathers and skin from game. Today, hot springs are still used as spas. Nevertheless, there are now more sophisticated ways of using this geothermal resource.

In modern direct-use systems, a well is drilled into a geothermal reservoir to provide a steady stream of hot water. The water is brought up through the well, and a mechanical system - piping, a heat exchanger, and controls - delivers the heat directly for its intended use. A disposal system then either injects the cooled water underground or disposes of it on the surface.

Geothermal hot water can be used for many applications that require heat. Its current uses include heating buildings (either individually or whole towns), raising plants in greenhouses, drying crops, heating water at fish farms, and several industrial processes, such as pasteurizing milk[1].

RELEVANCE FOR AND APPLICABILITY TO INDONESIA

Worldwide two main types of geothermal use can be found:

  1. Electricity production from geothermal heat resources. Geothermal heat is transformed into electricity using turbines (Carnot cycle).
  2. Direct use of geothermal heat for heating of all kinds of processes and/or space heating. The heat can be used directly and/or by applying a heat pump to transform it into higher temperatures that may be required in the application of the heat.

Currently most geothermal applications in Indonesia are found in electricity production from high enthalpy resources. Until now, the direct use of geothermal resources in Indonesia is limited. Considering the large geothermal potential in Indonesia, and considering the large demand for heat for processing in agriculture and industry, a large market for direct use is anticipated, especially considering the Paris agreements that will limit the use of fossil fuels for heating in future.

GEOCAP ACTIVITY IN THIS TOPIC

Within the GeoCap program, the potential for direct use was studied in more detail, especially for process heating, both from the resources side and from the point of view of the market. Considering the relatively high outdoor temperatures in Indonesia, it is anticipated that most heat demand is for process heat in agriculture and industry. Space heating is not a market. We focussed on western Java, because a) we had access to data for this area, and b) because most of the heat demand in industry is located in this area.

Resources

Three types of resources have been studied: surface manifestations, waste heat from geothermal power plants and sedimentary basins.

Surface manifestations like hot springs

These resources are found all over western Java, depending on the local volcanic activity. The known resources have been listed. A summary can be found below.

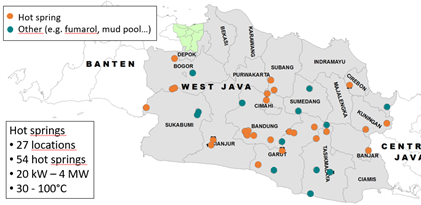

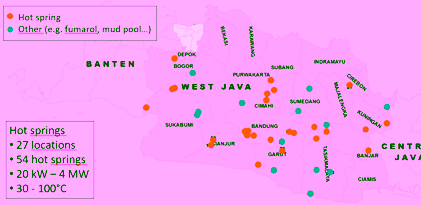

Figure 56 Locations of geothermal manifestations in West Java

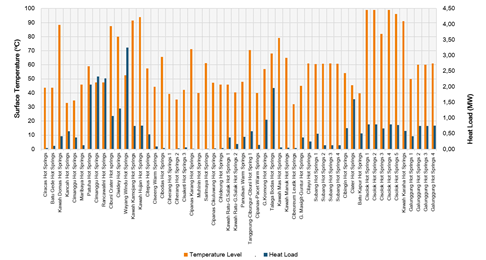

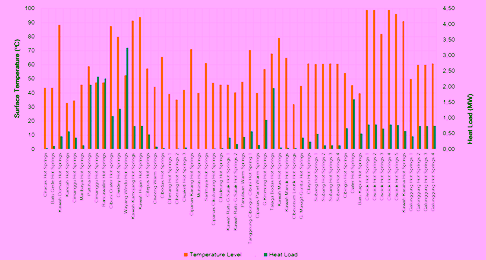

Figure 57 Surface temperatures and heat load of surface manifestations in West Java

The data show that most resources have a thermal power between 100 kW and 3 MW, and a temperature level between 30 and 100°C.

Waste streams from geothermal power plants

Geothermal power plants do not use all the heat for electricity production. There is still (waste) heat in the brine and condensate. The existing power plants on Western Java are shown below, and the characteristics of the waste heat available are depicted in the figure below that. Available temperature levels are between 45 to 175°C at a thermal power of 20 to 185 MW.

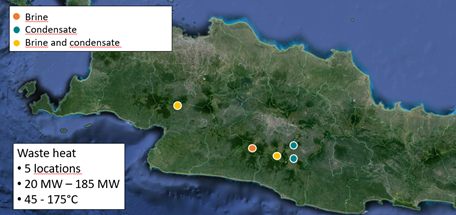

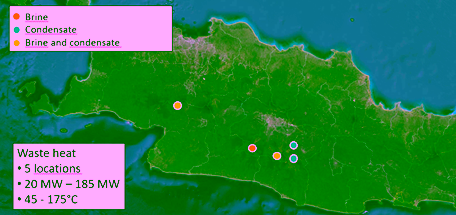

Figure 58 Locations of geothermal power plants with geothermal waste heat in West Java

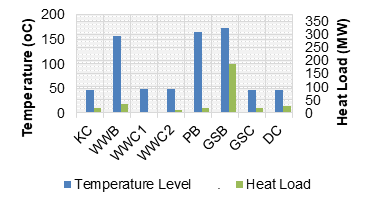

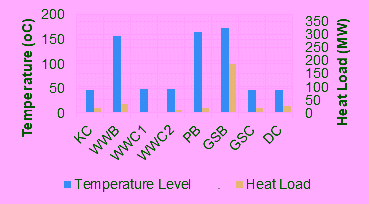

Figure 59 The potential geothermal waste heat in existing geothermal power plant in West Java

KC = Kamojang Condensate, WWB = Wayang Windu Brine, WWC1= Wayang Windu Condensate 1, WWC2 = Wayang Windu Condensate 2, PB = Patuha Brine, GSB = Gunung Salak Brine, GSC = Gunung Salak, Condensate, DC = Darajat Condensate

Sedimentary basins

Both types of direct use resources mentioned above are related to volcanic activities. The locations of these resources are strongly dependent on certain geological conditions. The location of the resource will determine the possible locations of the heat demand. For sedimentary basins, this is (at least partly) reversed: the location of the demand determines where we look for a resource. The largest heat demand for process heat is found around Jakarta, Bandung and Surabaya. For the Jakarta area, the sedimentary basin that is in the subsurface has been drilled extensively for oil and gas. From these data, we know that there are several reservoirs that have significant potential for low/medium enthalpy geothermal heat production. These reservoirs have been mapped, and some of these mapping results are shown below.

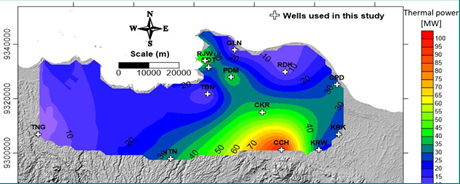

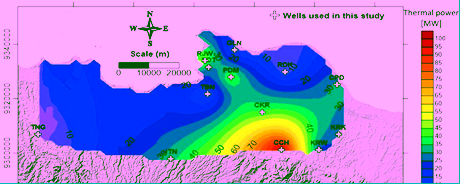

Figure 60 Map showing the distribution of calculated well thermal power of the Baturaja aquifer (from Suryantini et al, 2016)

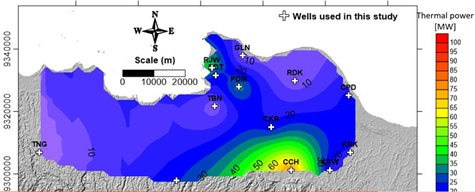

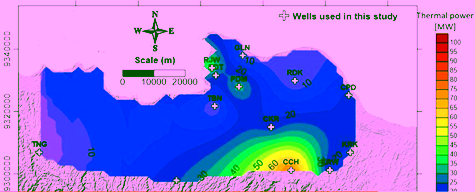

Figure 61 Map showing the distribution of calculated well thermal power of the Talang Akar aquifer (from Suryantini et al, 2016)

Market

The market can be split up in existing projects, and potential new projects.

Existing direct use

Existing projects are listed in the table below. All projects are based on surface manifestations or waste heat resources.

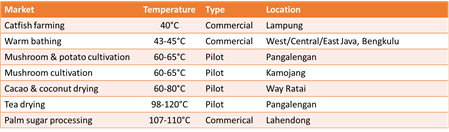

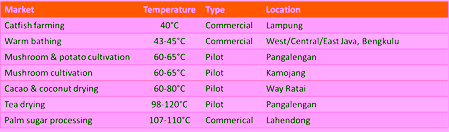

Table 4 Existing geothermal direct use projects in Indonesia

Potential direct use

Below a map is given of West Java with some potential direct use that can be found in this area.

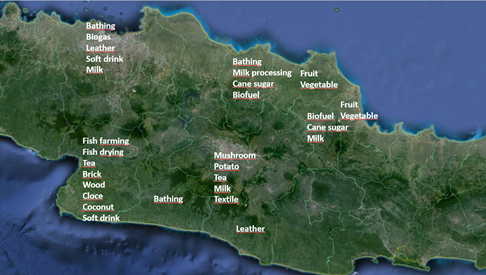

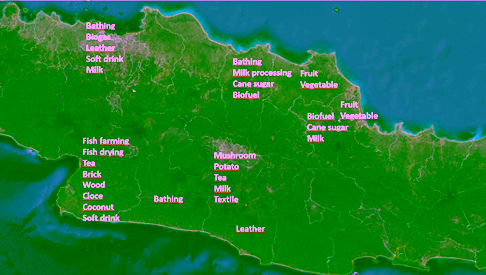

Figure 62 Potential direct use markets and locations in West Java

Almost 60% of processing industries in Indonesia are located in West Java province. Nearly all of them need heat for product processing. The majority of industrial energy demand is for heat. Heat is integral to many industrial processes including melting, drying, frying, pasteurising, and distilling. Each of these processes uses heat at a temperature specific to the materials involved and the product being manufactured. Current situation in West Java province, almost all heat demand is supplied by coal combustion, oil, solar, gas, and electricity. Very few of of them use geothermal as heat supply for their industrial processes.  The northern area of West Java has become a major industrial area. Areas such as Bekasi, Cikarang, and Karawang are sprawling with factories and industries, such as textiles, processed food, wood carvings and furniture, paper, chemicals, etc.

Match of market and resources

Surface manifestations

Most surface manifestations are relatively small in geothermal power. Only heat demand that is located very close to the source can be matched. Most interesting market for use of surface manifestations is for bathing, hotels and spas. The impact of this kind of direct use on the local economy may be very positive, but the impact on the energy picture of Indonesia will not be significant due to cheap of domestic energy prices.

Waste heat

All geothermal power plants have waste heat to some extent, just like fossil fuel thermal power plants do. Reuse of waste heat from power plants is common in many countries, especially in moderate climates, where waste heat is being used for space heating. For Indonesia, the main market is for industrial processes. Widodo et al (2018) studied one potential example of direct use: tea drying using waste heat from Wayang Windu power plant. The economies are shown in the figure below:

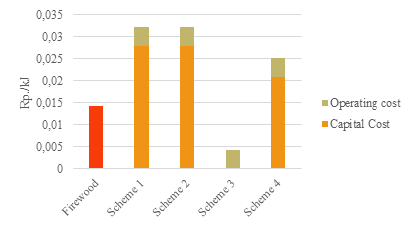

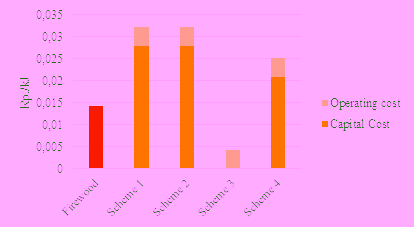

Figure 63 Energy cost comparison of each scheme with firewood.

  • Scheme 1: Capital (investment) is 100% funded by a bank loan at 10%. Income tax of 25%.
  • Scheme 2: Capital (investment) is 100% funded by a bank loan at 10%. Tax component adjusted to the regulation of Finance Ministry (PMK No. 21/PMK.011/2010). Government provides an income tax facility for activities exploiting renewable energy sources in the form of net income reduction by as much as 30% of the amount of investment, which is charged for 6 years at 5% per year.
  • Scheme 3: 100% CSR funding without interest rate by producer (waste heat provider). Income tax of 25%.
  • Scheme 4: Green funding by International Finance Corporation (IFC). The loans obtained from IFC are limited to 25% of the total “greenfield” project cost up to maximum of $100 million. The interest rate on the loan is 0.75% (LIBOR). Income tax of 25%.

This shows that the investment costs are too high to get a positive business case wrt to the reference case of burning wood for the heat. The main cause is the very low price of heat from wood burning. A price of 0,015 Rp/kJ is about equal to 1 euro/GJ. The wholesale market price for gas is above 3 euro/GJ. So compared to gas, direct use in this case is feasible, but not compared to wood burning. The only realistic way forward under current market conditions would be that the investment in the installation is done entirely by the geothermal power company as a CSR project to involve the local citizens in a positive way. In addition, the use of geothermal heat for the production of vertiver oil was studied, with similar results: the project will only be feasible when the project is realized as a CSR project, with full coverage of the CAPEX by the geothermal power company.

In general, direct use of waste heat from geothermal power plants may be a significant source of renewable heat for all kinds of industries in Indonesia. It is anticipated that there will be more geothermal power projects in Indonesia in the near future. As geothermal power plants export most of the electricity out of the area, the investment of the concession holder in local direct use may be a good way to involve people in a positive way. In addition, for new industries with a high heat demand, locating a new factory close to a geothermal power plant may be a good investment, especially for those investors that are looking for renewable energy to keep their CO2 footprint low.

Sedimentary basins

As mentioned above, the largest industrial heat demand in Indonesia is located in the area of the Jakarta basin. Here geothermal reservoirs can be found that have the potential to produce a large amount of geothermal heat. For the production of hot water of temperatures of up to 90 °C, this can be done economically under current market conditions (approx. payback time = 7 years) For the production of steam, the payback time is longer, due to the fact that steam heat pumps have to be incorporated in the process. The price of heat made using natural gas is relatively low in Indonesia. This makes it hard for geothermal heat to be competitive.

Future outlook

Currently geothermal direct use is competing against low priced heating fuels like wood and natural gas. As long as the prices of the reference are low, the penetration of geothermal direct use will be limited to a few cases where the heat is (almost) free and where the heat demand is very close to the geothermal resource. In the long run, we anticipate that costs of CO2 emissions from fossil fuels and scarcity of wood from local forests will have an impact on the business case of direct use. Therefor we anticipate that geothermal direct use will be a very valuable asset for the Indonesian economy in the years to come. To be able to utilize geothermal heat, it is advisable to create a regulatory framework that fits with this market and technology. In addition, to demonstrate the technology/market, it seems appropriate to start full-scale demo projects that would convince investors to apply the technology in the future.

Materials

CONTACT

Rob Kleinlugtenbelt (IF Technology)

Suryantini (ITB): suryantini@gc.itb.ac.id

Widodo (UI): widodo@che.ui.ac/id
